Stair Platform Lift

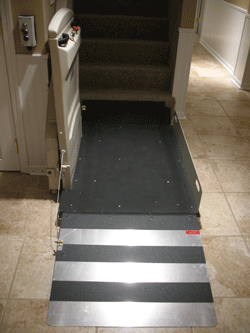

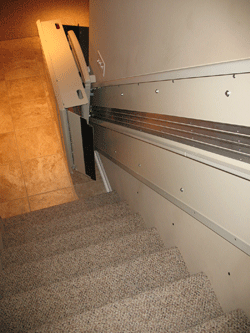

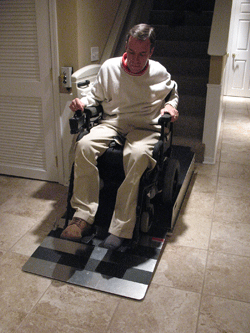

The HES-125 Stair Platform Lift is designed as a permanent wheelchair lift for both residential and commercial use. A practical, reliable solution for improving accessibility in all facilities and it's more affordable and takes up less space than an elevator.

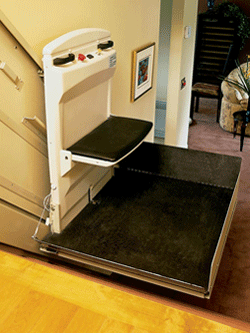

Features include three sided access to the wheelchair lift platform, custom colors, self-support posts, emergency stop switch, and fold up seat with safety belt, this permanent lift also has a platform that can be folded manually or by power to take up less stairway width.

Four dimension sizes are available for purchase:
Type I: 27.50" x 36"
Type II: 28.50" x 44"
Type III: 30" x 48"
Type IV: 30" x 44"





Stair Platform Lift
800-876-RAMP (7267)

Call For Price





Ask about our installation services
(800) 876-7267



Wheelchair Lifts main page





Handi-Ramp's products are available across North America including Alaska, Hawaii, Canada and Puerto Rico.
You can call us toll free, at (800) 876-RAMP to discuss your specific needs.



  1. Features
  2. Specifications
  3. Additional Info
  4. Shipping Info
* Aluminum extruded rail
* Constant pressure control
* Automatic access ramps
* Obstruction sensors
* Call/send controls on lift and at each landing
* Non-slip surface
* Indoor/outdoor use
* Beige color
* Folding platform (uses up less than 11in of space)
* Travel speed: 14 ft per minute
* 450 lb. capacity
* .5 horsepower motor. 110V
* One deflector sheave
* Textured anti-slip surface on platform and ramps
* ABS plastic carriage covers
