See How To Install the Portable Delivery Ramp Under A Trailer

The Portable Delivery Ramp System Can Mount Under Any Semi-Trailer

The Mounting System Can Be Moved Between Trucks In Minutes Without Any Tools


The Mounting Hardware Has Two Components:

The Locking Bracket





Click to Enlarge



  • The two brackets on the top mount onto the I-beams of any standard trailer
  • The two brackets on the bottom secure the Portable Delivery Ramp
  • This bracket is approximately 6 feet long

The Rotating Bracket Bar







Click to Enlarge

  • The two brackets on the top mount onto the I-beams of any standard trailer
  • The two brackets on the bottom secure the Portable Delivery Ramp
  • This bracket is approximately 6 feet long



1


Rotating Bracket Bar to the I-beams of the trailer.Click to Enlarge
  • Mount the Rotating Bracket Bar to the I-beams of the trailer.
  • Secure the brackets but do not tighten all the way, yet.
2



Click to Enlarge



  • Mount the Ramp on the Rotating Bracket Bar by sliding one side of the folded ramp into the ramp bracket.
  • Secure Ramp by locking the ramp handle in place with the attached L-pin and hitch pin clip.
3





  • Slide Ramp and Bracket Bar toward the middle of the trailer (approximately 30″ in from the edge or the trailer).
4

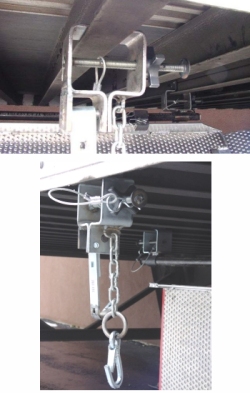

  • Install the locking bracket near the edge of the trailer.
  • Tighten the thumb nut and lock the hitch pin clip in place.
5
Click to Enlarge

  • Rotate Portable Delivery Ramp up and lock in place.
  • Secure the ramp using the safety chain.
6



Click to Enlarge



  • Tighten the thumb knob nuts on the Rotating Bracket Bar.
  • Secure Ramp with the safety chains.

The Following Drawings Show The Mounting System For The Portable Delivery Ramp As Viewed From the Tailgate of The Trailer
